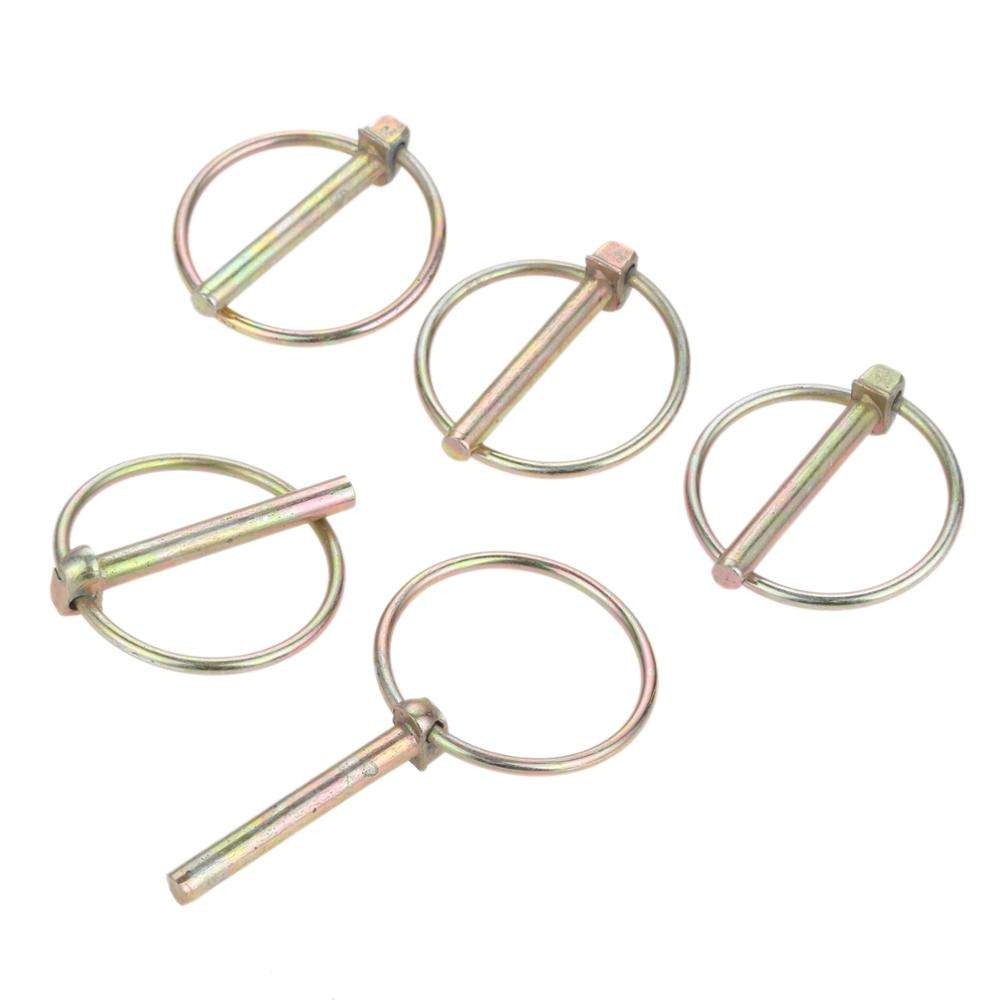

Colourful Zinc Plated Hitch Linch Spring Pins: The Colorful Fastening Elves Forged by The Factory

In the field of mechanical connection and quick locking, colourful zinc plated hitch linch spring pins, with their exquisite structure and striking appearance, have become key components that combine functionality. This hardware part, which integrates spring elasticity and pin positioning functions, achieves the dual role of anti-corrosion and differentiation through the colourful zinc plating layer, playing an efficient connection role in agricultural machinery, auto parts, outdoor facilities and other scenarios. As a factory specializing in the production of such spring pins, we always focus on precision manufacturing and diversified needs to create fastening products that are both reliable and visually recognizable.

The scientific proportion of materials is the basis of the elasticity and strength of the spring pin. The pin body is made of 65Mn spring steel, with its carbon content controlled between 0.62% and 0.70%. After 860℃ oil quenching + 420℃ tempering treatment, the hardness is stably maintained at HRC42-48, ensuring that the elasticity remains intact during repeated insertion and extraction; The spring mandrel is made of 50CrVA alloy spring steel, which is subjected to low-temperature annealing after cold coiling forming to eliminate processing stress, so that the compression amount can still maintain stable elasticity when controlled at 30% of the free length. All raw materials must undergo metallographic analysis to ensure that the grade of non-metallic inclusions does not exceed level 2, so as to avoid affecting the elastic performance.

The refinement of the production process endows the product with excellent performance. The pin body is formed by precision cold drawing process, with the diameter tolerance controlled at h9 level and the surface roughness Ra ≤ 1.6μm, providing a good base for coating adhesion; The spring assembly adopts an automatic press-fitting machine to ensure that the spring preload deviation does not exceed ±5%, so that the insertion and extraction force is stable in the comfortable range of 30-50N; The key colourful zinc plating process uses trivalent chromium passivation treatment, with the coating thickness reaching 8-12μm. By adding organic dyes, six colors including red, yellow and blue are achieved. Each color corresponds to different specifications or application scenarios, which not only meets the customer's identification needs, but also passes the anti-corrosion standards of no white rust in 72-hour salt spray test and no red rust in 200-hour salt spray test.

The quality inspection system builds an all-dimensional guarantee. In the dynamic elasticity test, the spring pin must undergo 5000 insertion and extraction cycles, and the elastic attenuation must not exceed 10%; The coating adhesion is tested by cross-cut test, and the peeling area of the coating after tape stripping does not exceed 5%; The dimensional accuracy is fully inspected by a 2D image measuring instrument, and the straightness error of the pin body is controlled within 0.1mm/m; For products used in safety applications, shear strength test is also required to ensure that the shear force is not less than 200MPa. Each product is attached with a laser-marked batch code, which can be traced back to the production team and test data, realizing accurate traceability of quality problems.

These colourful zinc plated spring pins have been widely used in various fields: on agricultural machinery, red spring pins are used for quickly replacing plowshare components, while yellow ones mark transmission system connectors for easy maintenance identification; In the car spare tire fixing device, blue spring pins indicate that the installation is in place through intuitive color; At the connection of outdoor amusement facilities, colourful spring pins not only realize quick disassembly and assembly, but also improve the safety of children's use through bright colors; In the locking mechanism of logistics turnover boxes, spring pins of different colors are used to distinguish different specifications of boxes, improving sorting efficiency.

As a producer, we are well aware that the reliability of this small part directly affects the operation safety of the equipment. In the 11 processes from steel rolling to finished product packaging, we perfectly integrate practical functions and visual design with micron-level precision control and color consistency management. In the future, we will develop new models with fluorescent coatings and error-proof structures, so that colourful zinc plated spring pins can play a greater role in intelligent assembly scenarios and become both reliable and flexible fastening elves in industrial connections.
